Description
Heavy-duty Dodge / Reliance Electric TM TR-800A industrial gear reducer with approximately 129.7:1 reduction ratio.
Large triple-reduction industrial gearbox designed for low-speed, high-torque applications.
This particular reducer appears to have been professionally serviced/reconditioned by Electro-Mec Inc. of Indiana, Pennsylvania. The Electro-Mec service identification plate and service/shipping tag remain attached to the unit. The service tag states that the equipment was thoroughly tested prior to shipment.

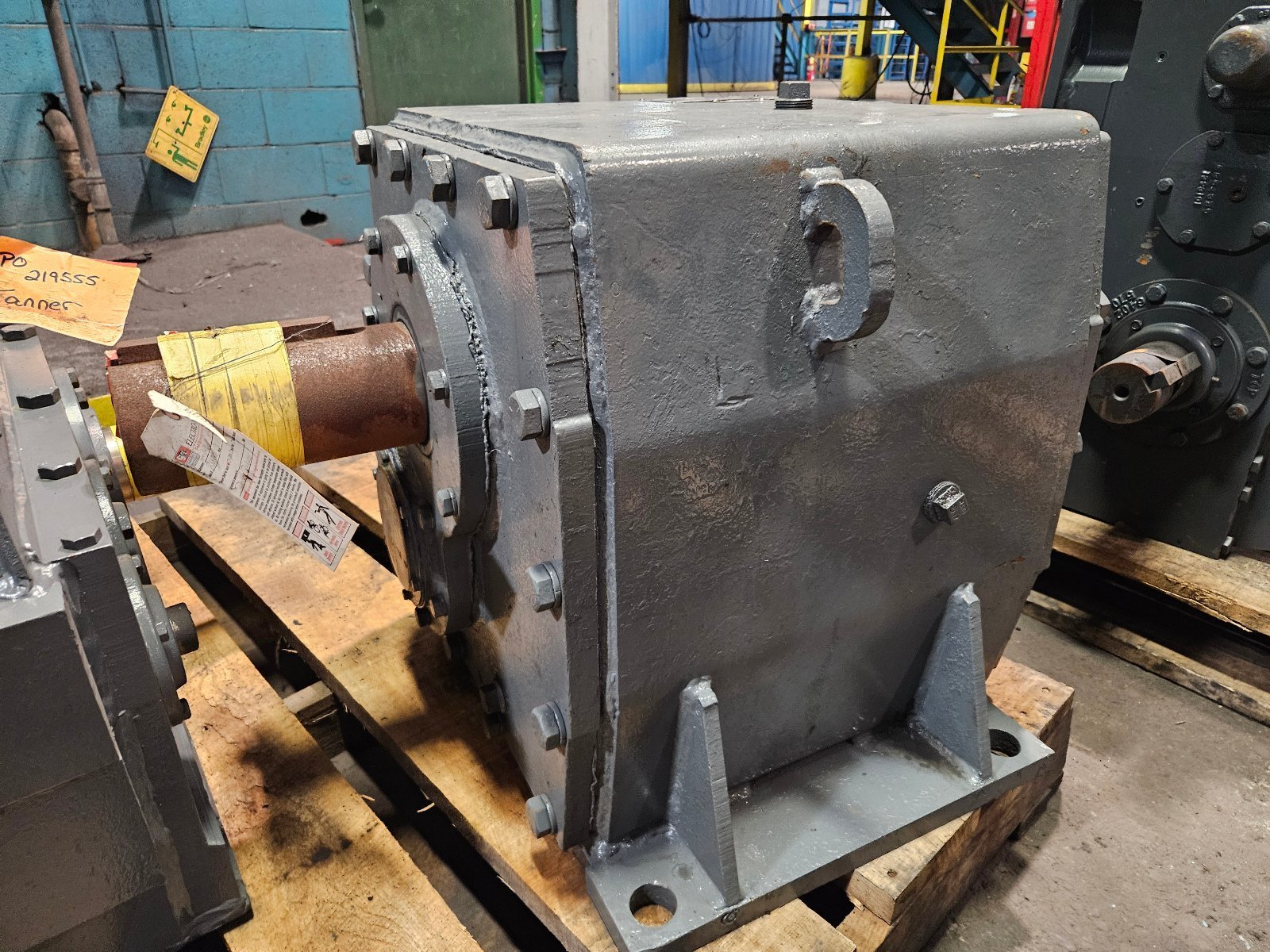

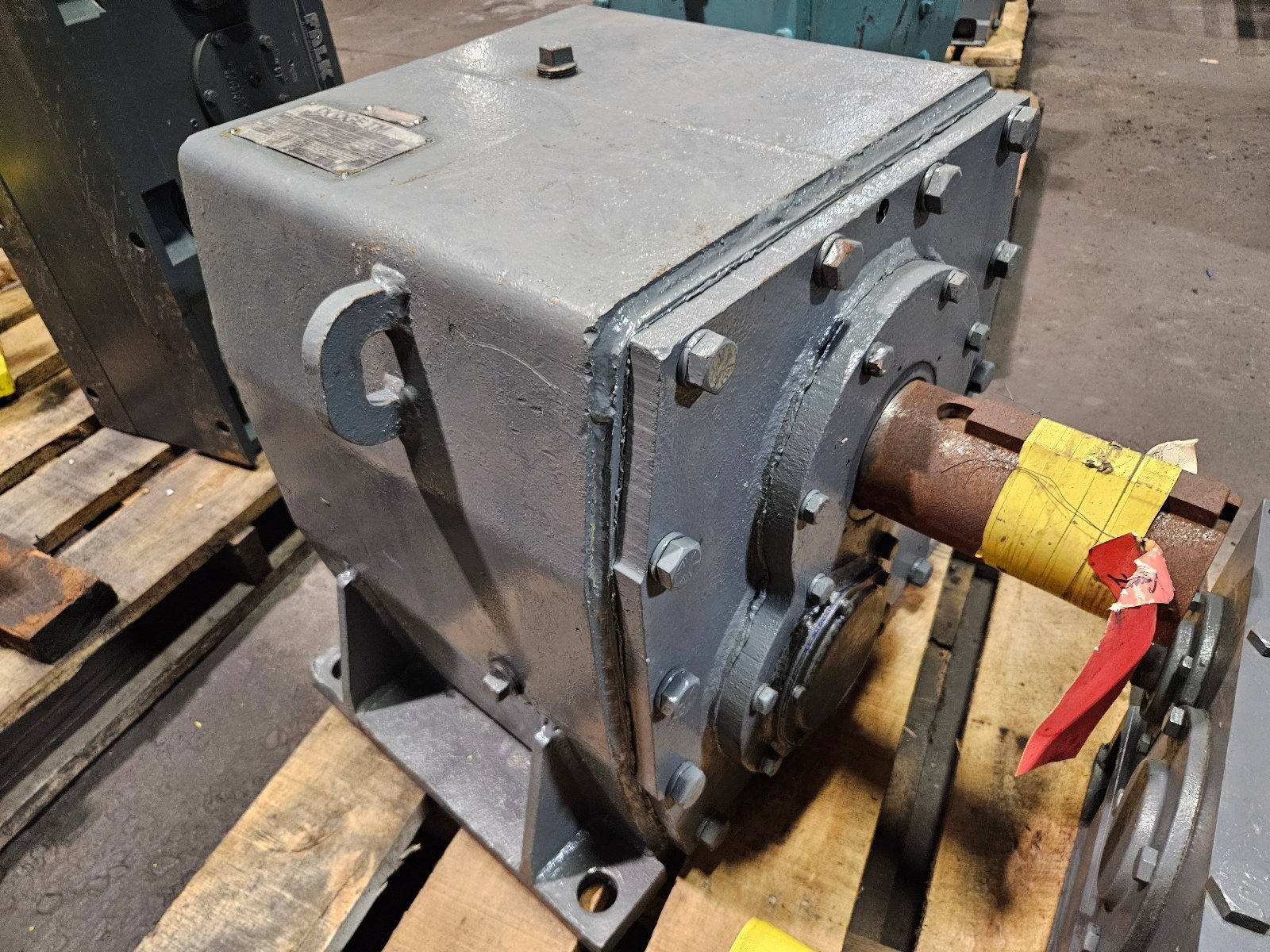

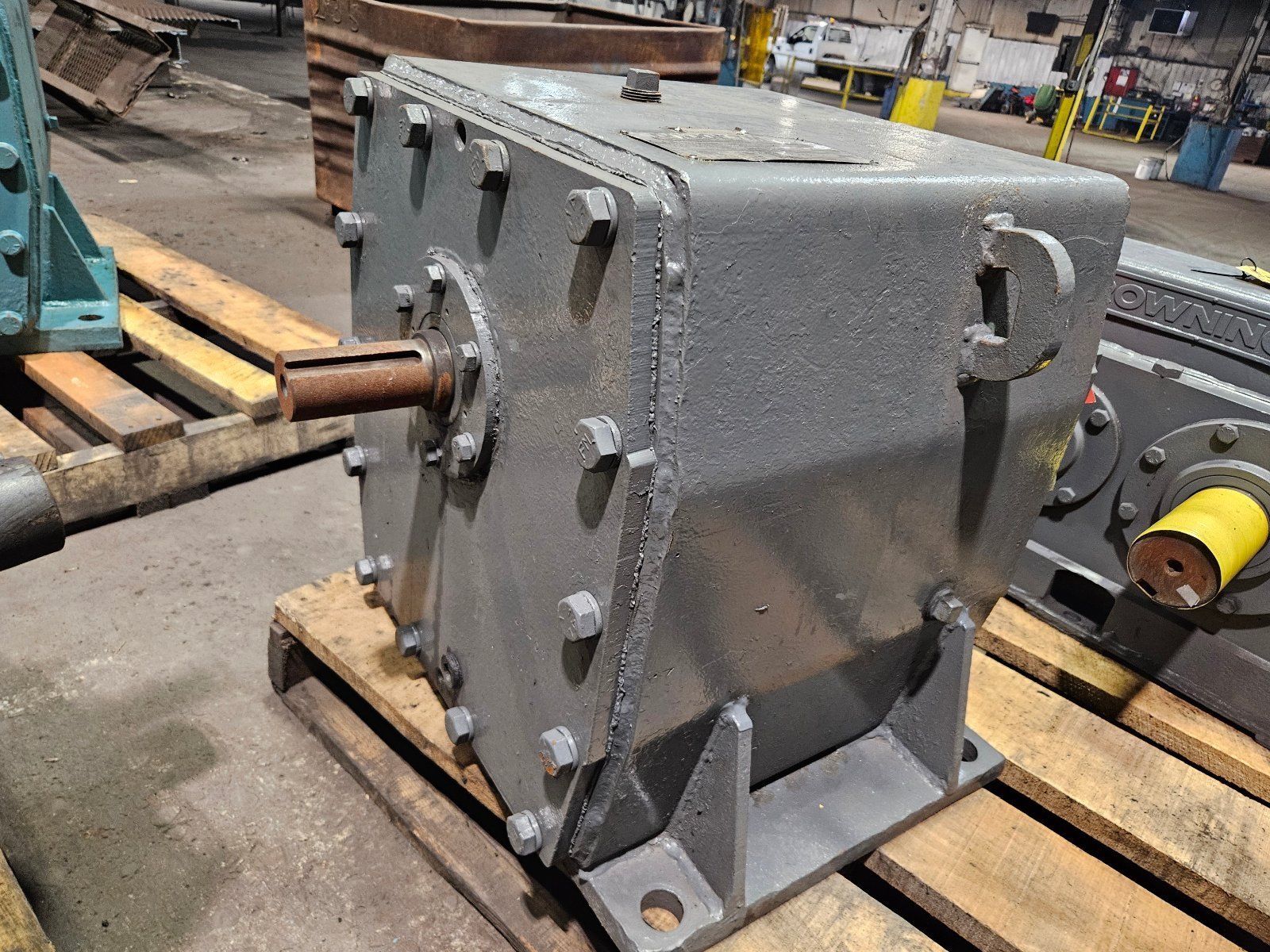

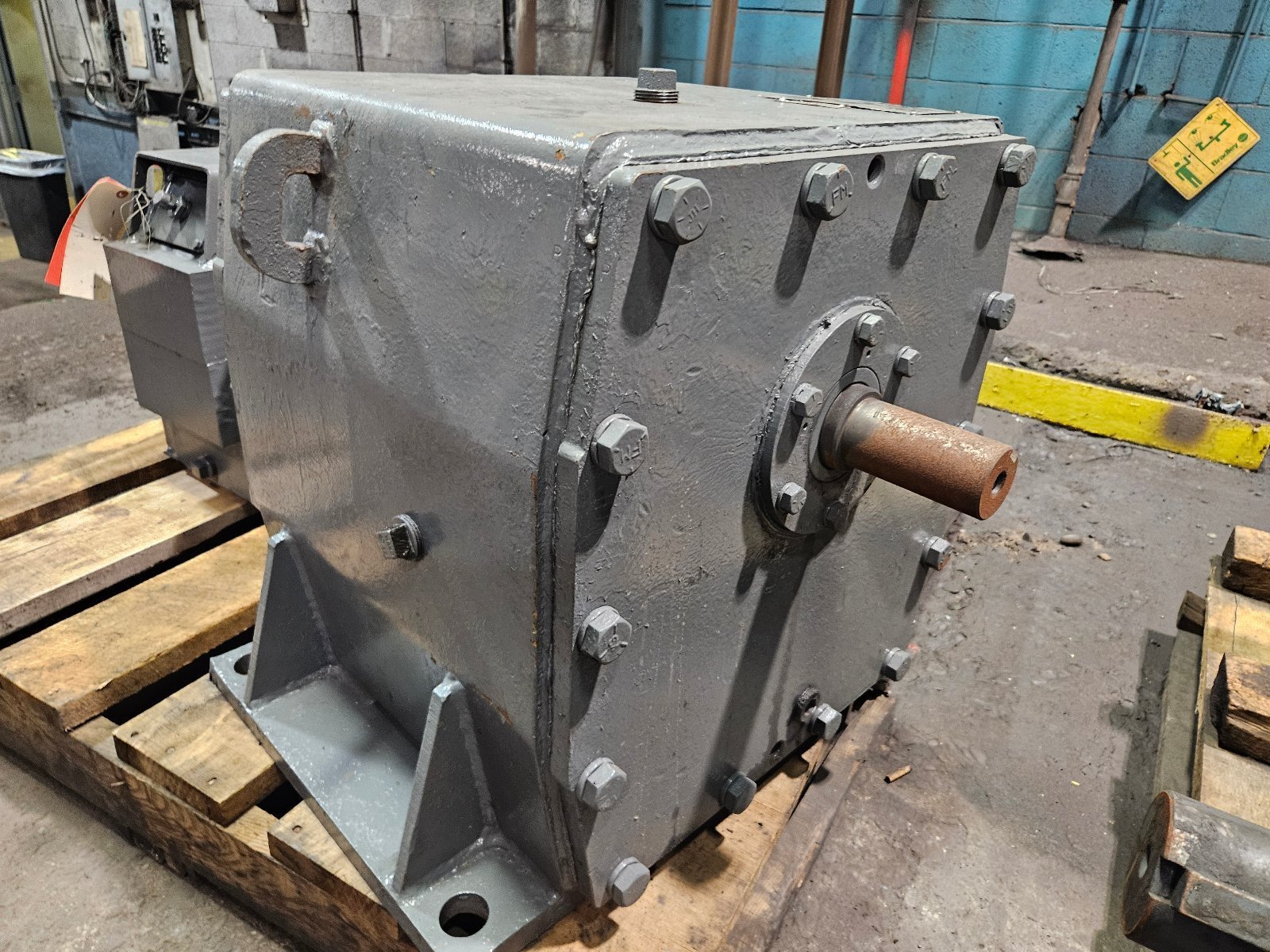

The reducer has been cleaned and repainted and is in very good visual condition for its age. Housing, mounting feet, covers, input/output shafts and lifting points appear complete and intact.

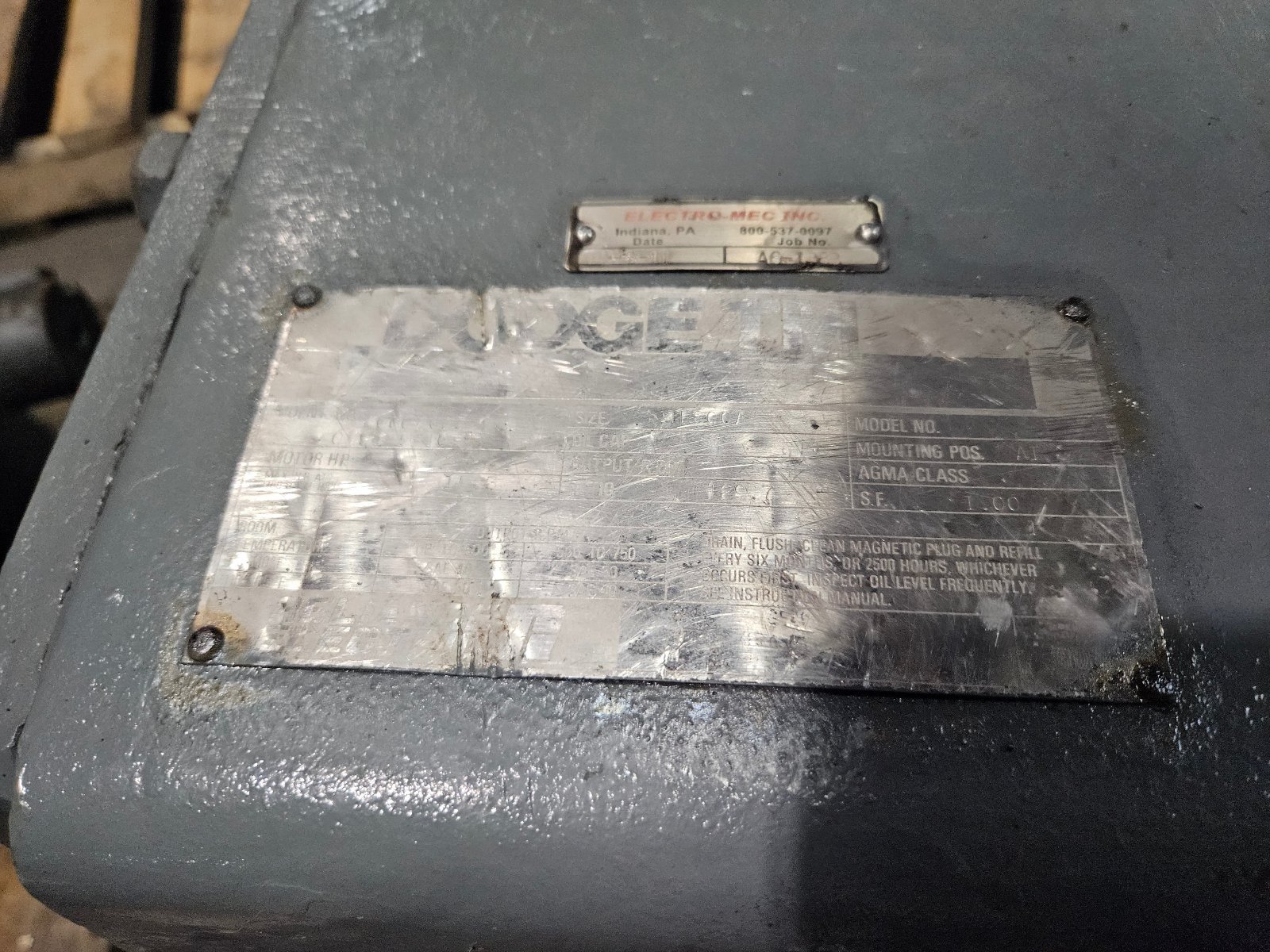

The original Dodge/Reliance nameplate is worn and scratched but remains attached.
Specifications
Manufacturer: Dodge / Reliance Electric
Series: TM
Model / Size: TR-800A / Size 800
Type: Heavy-duty industrial concentric gear reducer
Reduction: Triple reduction
Gear Ratio: Approximately 129.7:1
Approx. Output Speed: 13.5 RPM at 1,750 RPM input
Mounting: Foot mounted
Configuration: Inline / concentric input and output shafts
Lubrication: Oil bath
Service Factor: Nameplate appears to indicate 1.00
Approx. Weight: 1,250 lb / 570 kg
Country of Manufacture: USA
Condition: Used – professionally serviced/reconditioned
Service / Reconditioning History

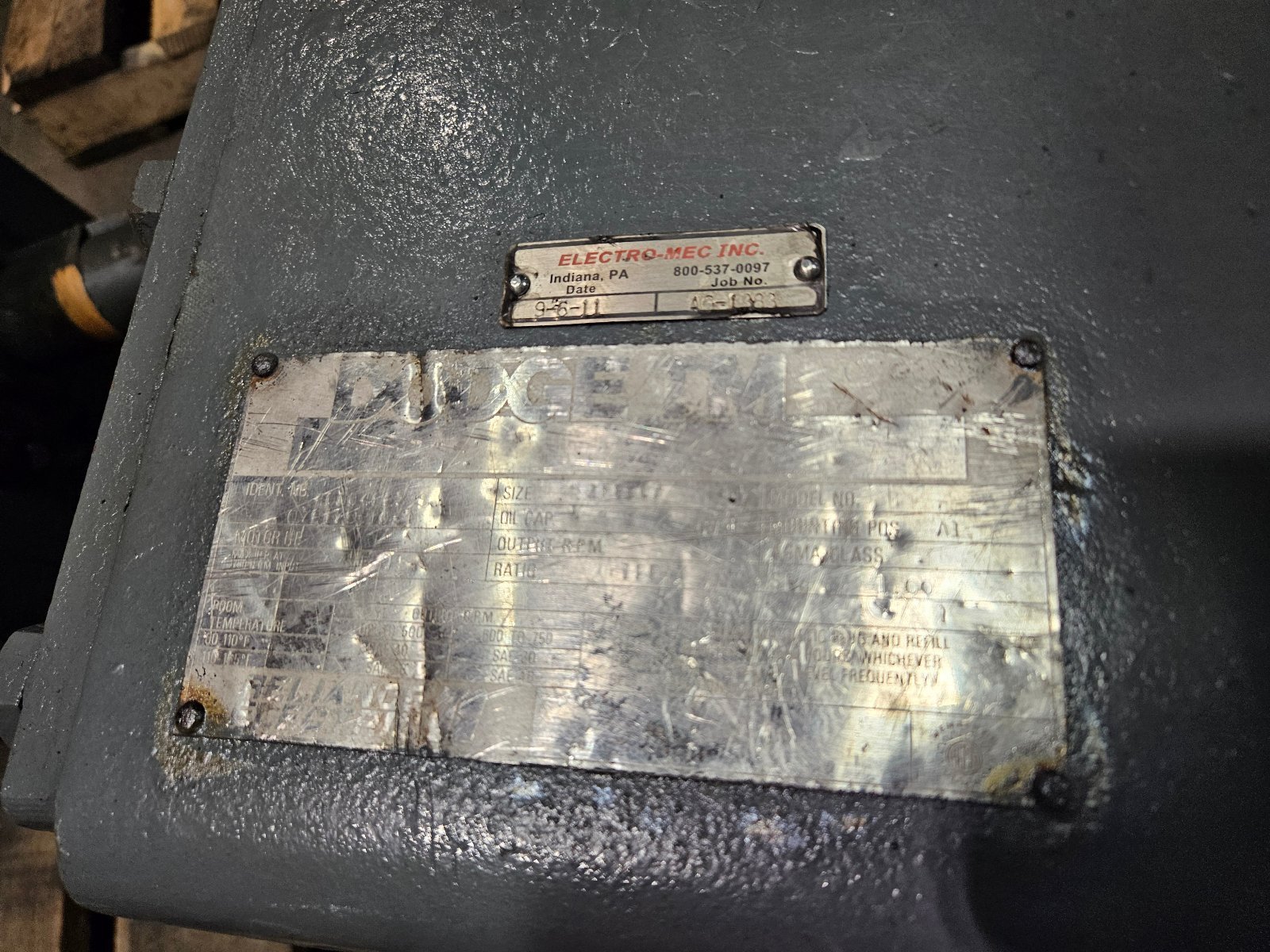

An Electro-Mec Inc. service plate and service tag are attached to the reducer.
The tag indicates the equipment was professionally handled and states that it was:
“Thoroughly tested prior to shipment.”
Electro-Mec is an industrial electromechanical repair and rebuilding company based in Indiana, Pennsylvania.
Exact scope and date of the prior rebuild/service are not presently documented, so the reducer is being represented as professionally serviced/reconditioned, rather than as a newly remanufactured unit.
Condition:
– Professionally serviced/reconditioned
– Electro-Mec service identification tag attached, unit was tested
– Input shaft present
– Output shaft and keyway present
– Lifting points intact
– Breather/fill provisions present
– Stored indoors
– Original Dodge/Reliance nameplate present but worn
Additional Information
Input shaft diameter: TBD
Output shaft diameter: TBD
Overall dimensions: TBD
Mounting-hole dimensions: TBD
Electro-Mec service date/job number: Partially legible – see photos
Additional photographs and measurements can be supplied upon request.
Shipping:
Freight shipping required.
Approximate bare reducer weight is 1,250 lb (570 kg).
For freight planning, allow approximately 1,400–1,500 lb palletized/skidded, depending on packaging.
Buyer is responsible for freight unless otherwise arranged.
Loading assistance is available.
