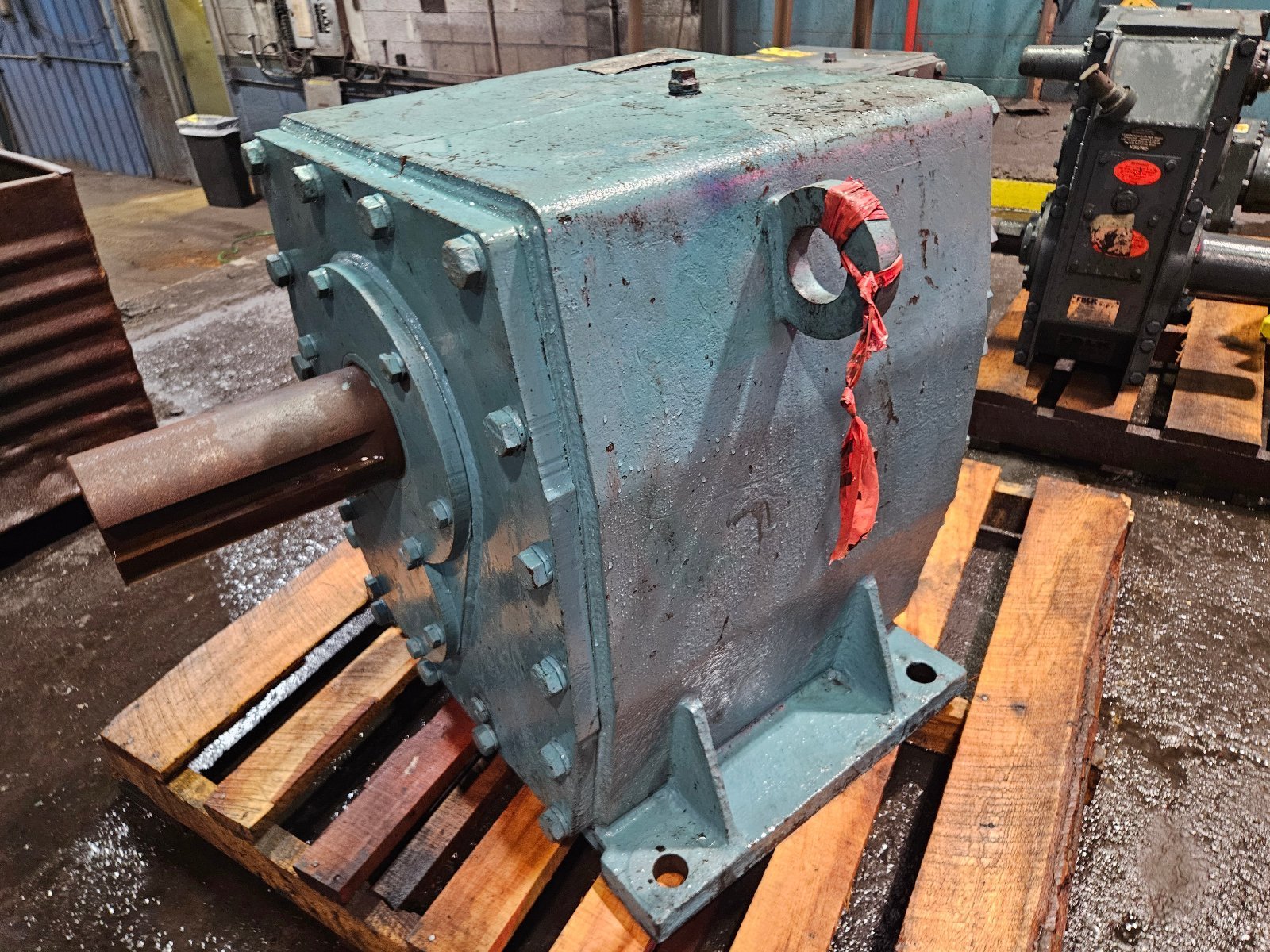

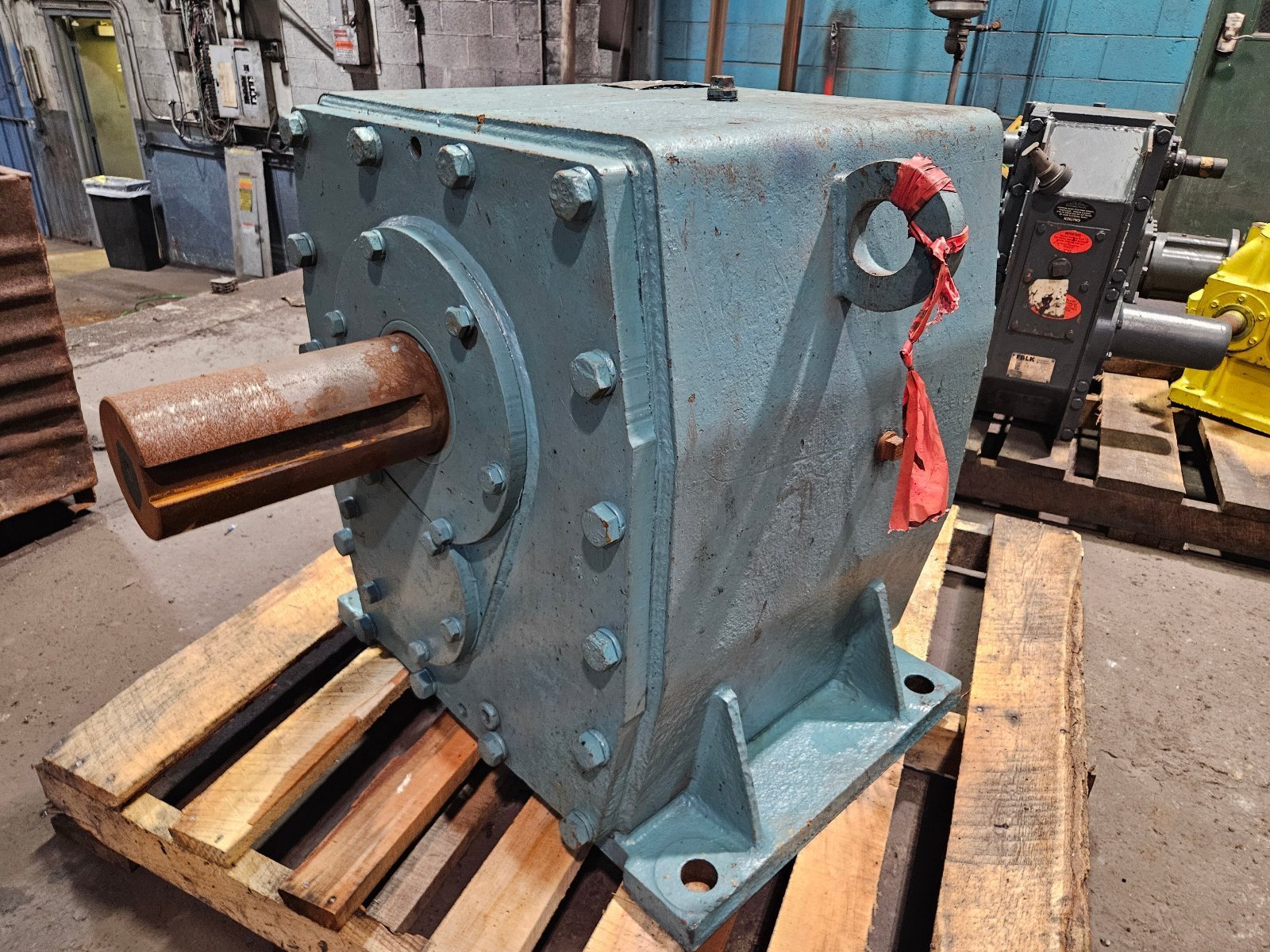

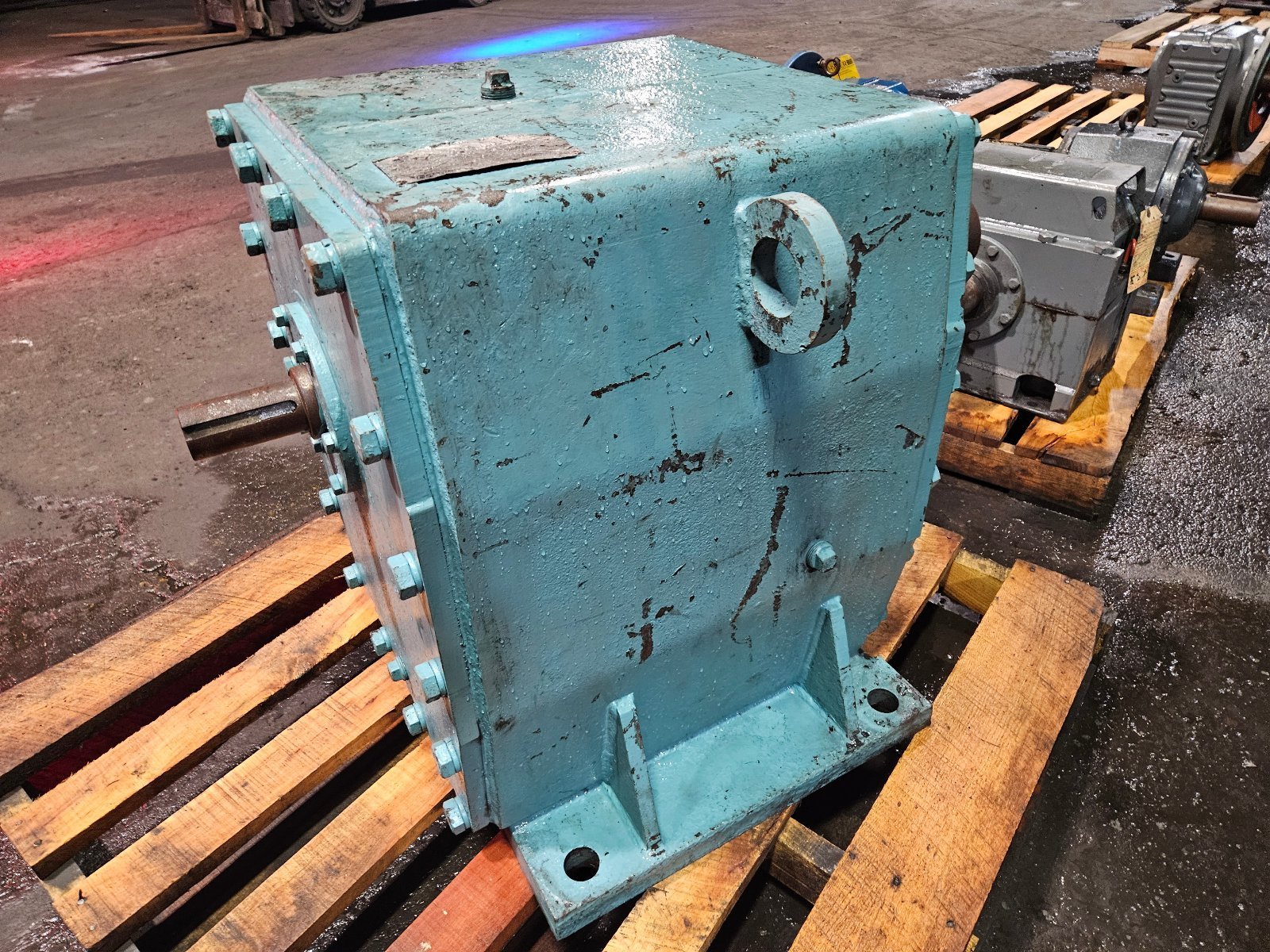

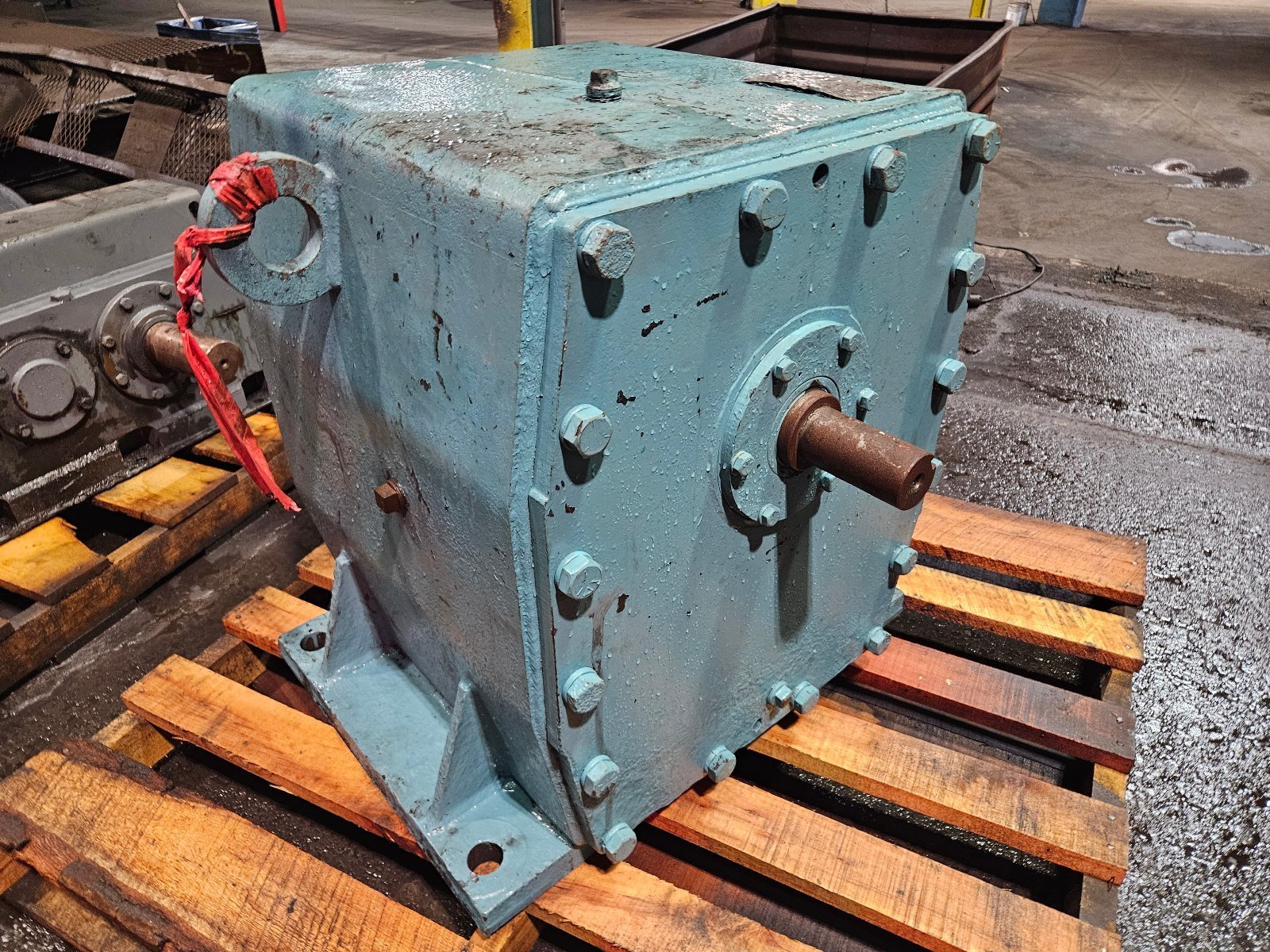

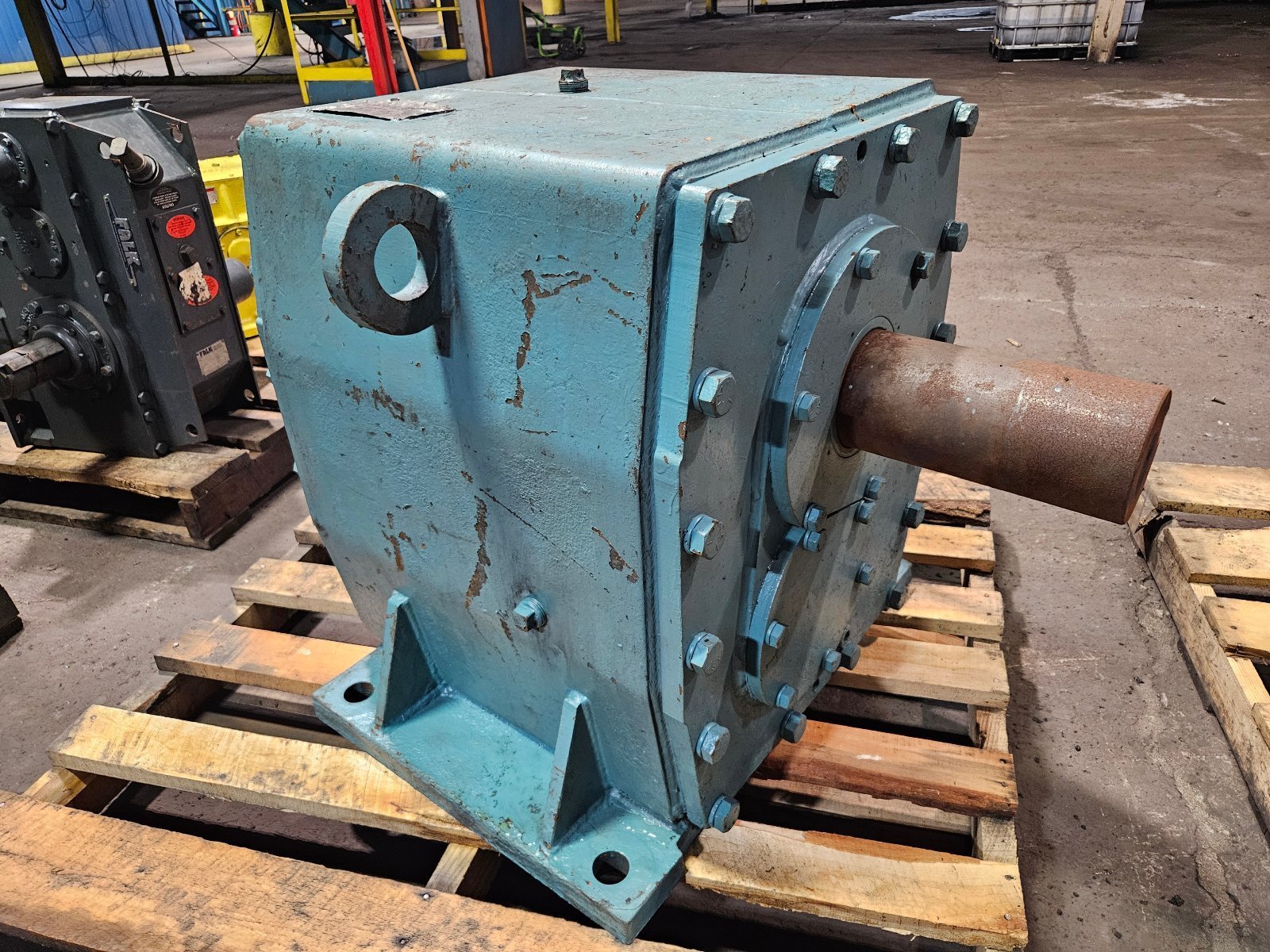

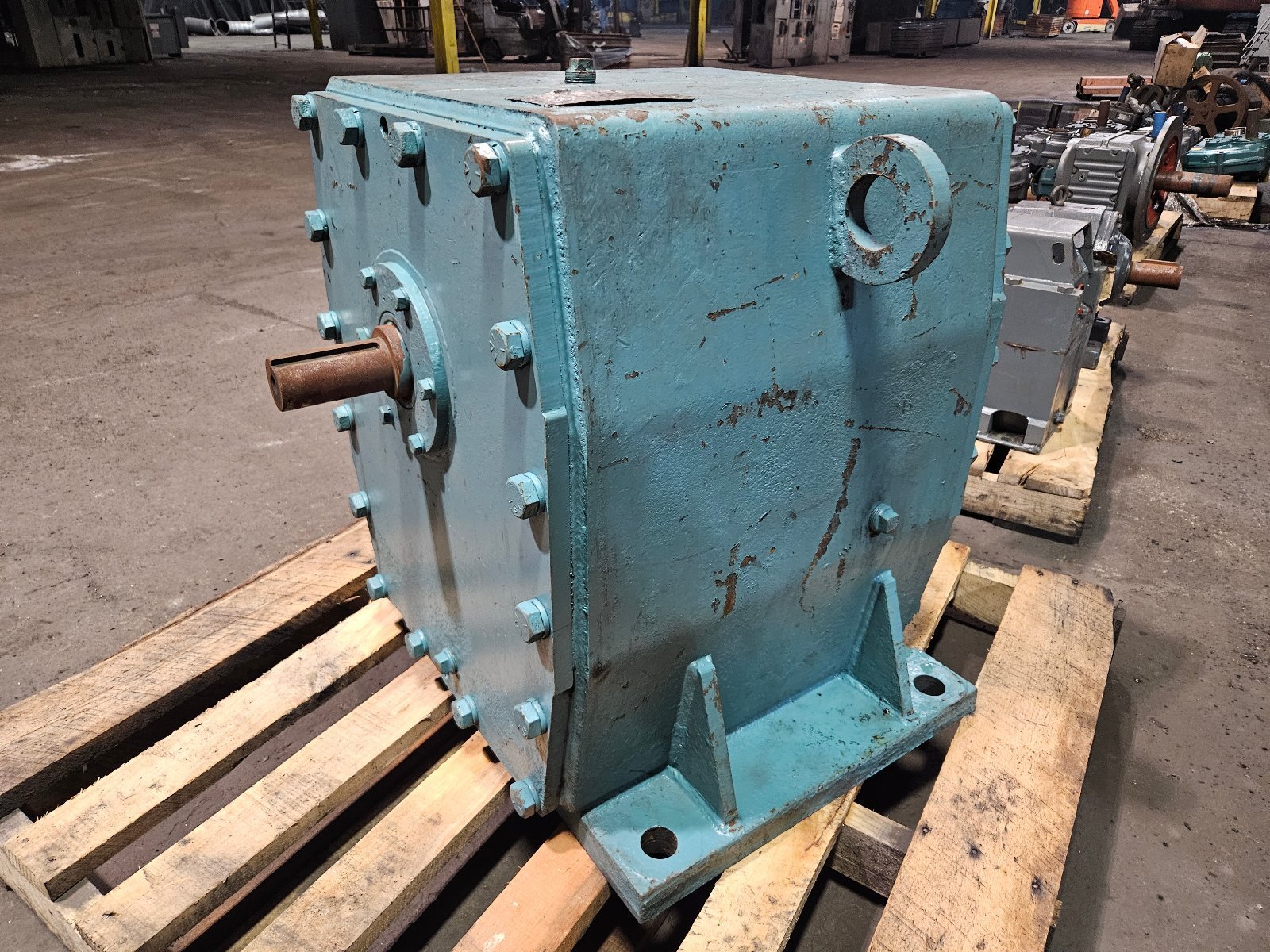

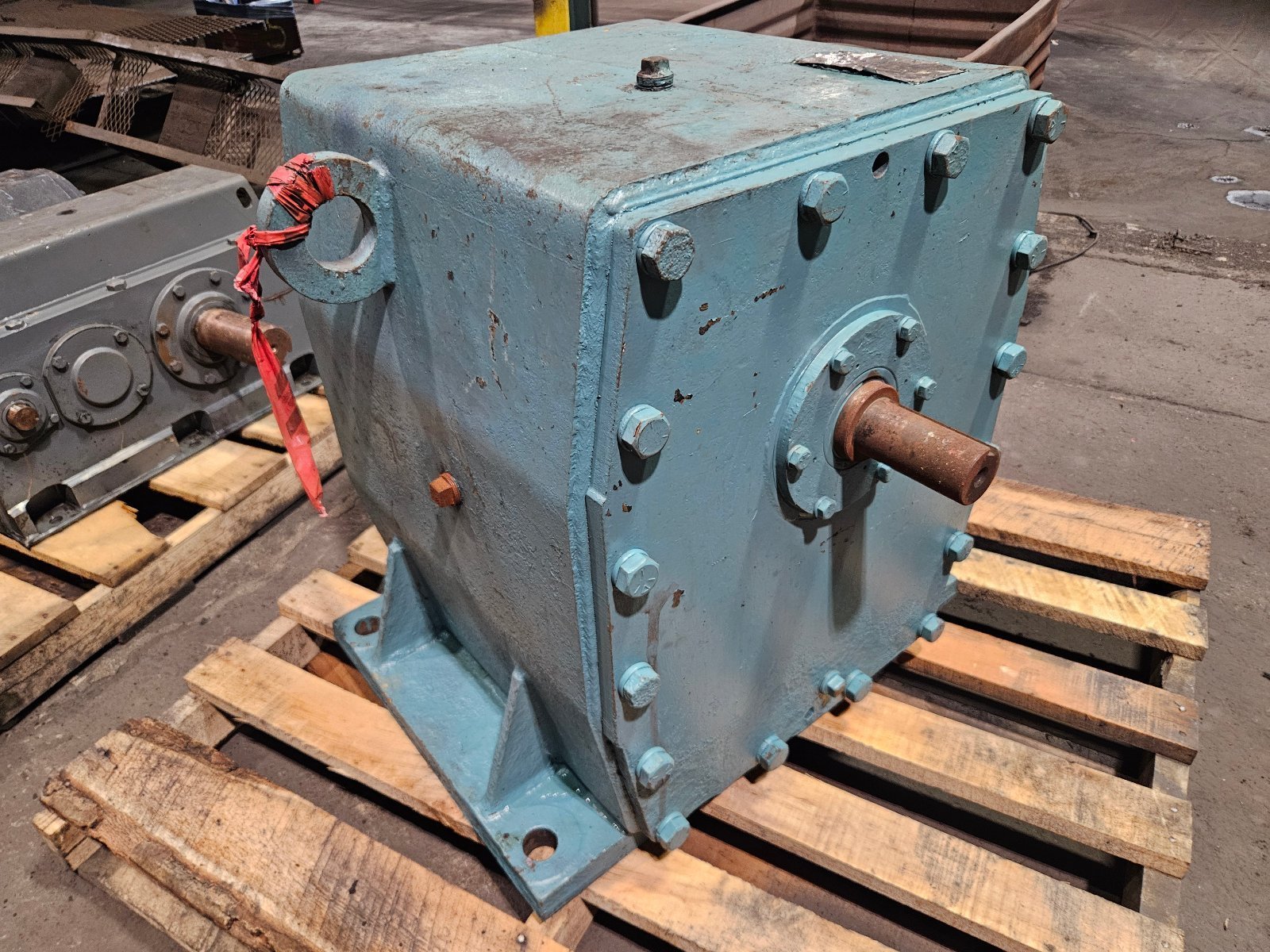

Heavy-duty Dodge / Reliance Electric TM TR-1000A industrial gear reducer with a 105.9:1 reduction ratio.
This is a large triple-reduction industrial gearbox intended for severe-duty, high-torque applications. The reducer has previously been serviced/reconditioned and repainted and presents well for its age. Housing, mounting feet, covers, and shafts appear complete and intact.

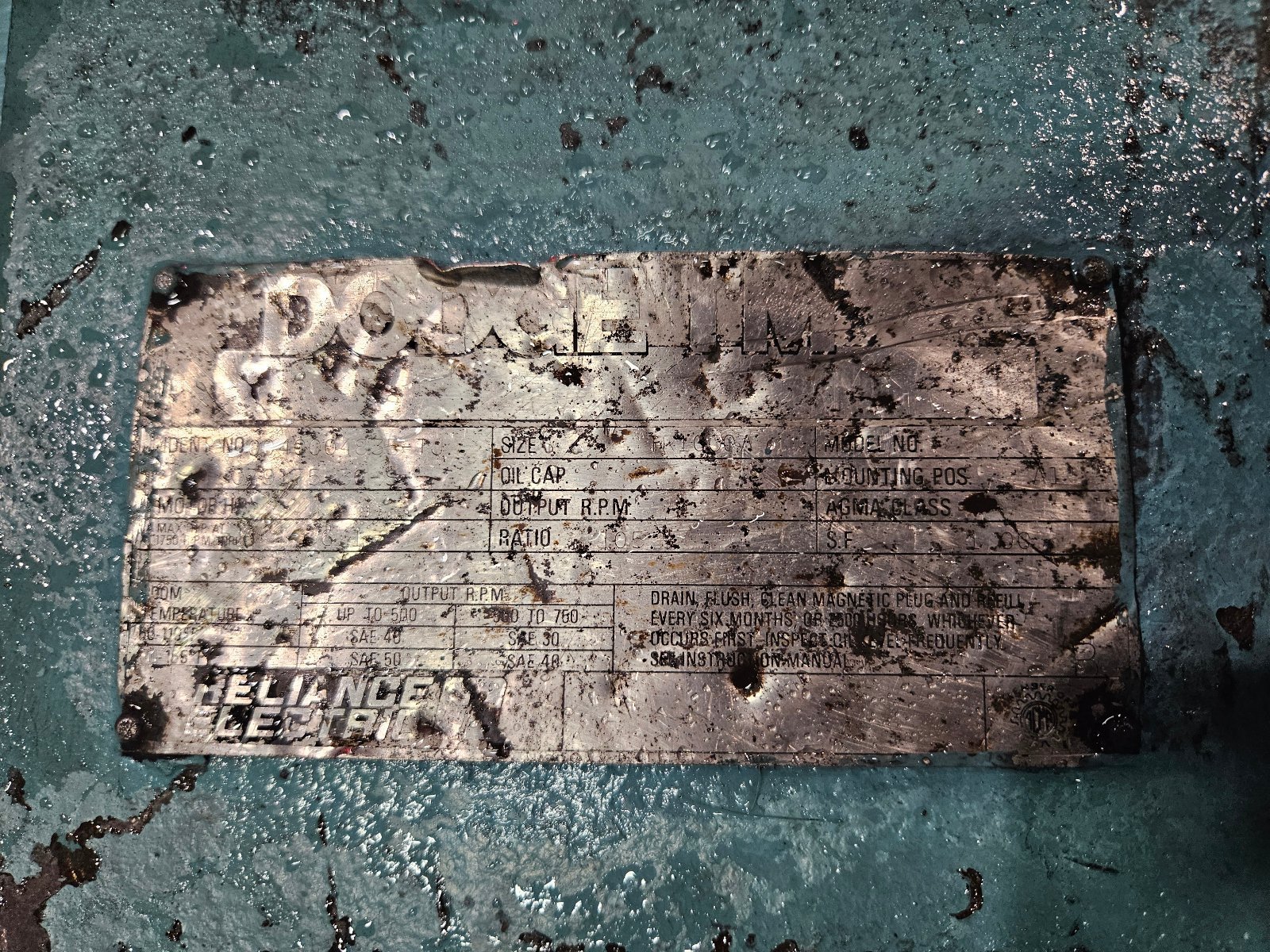

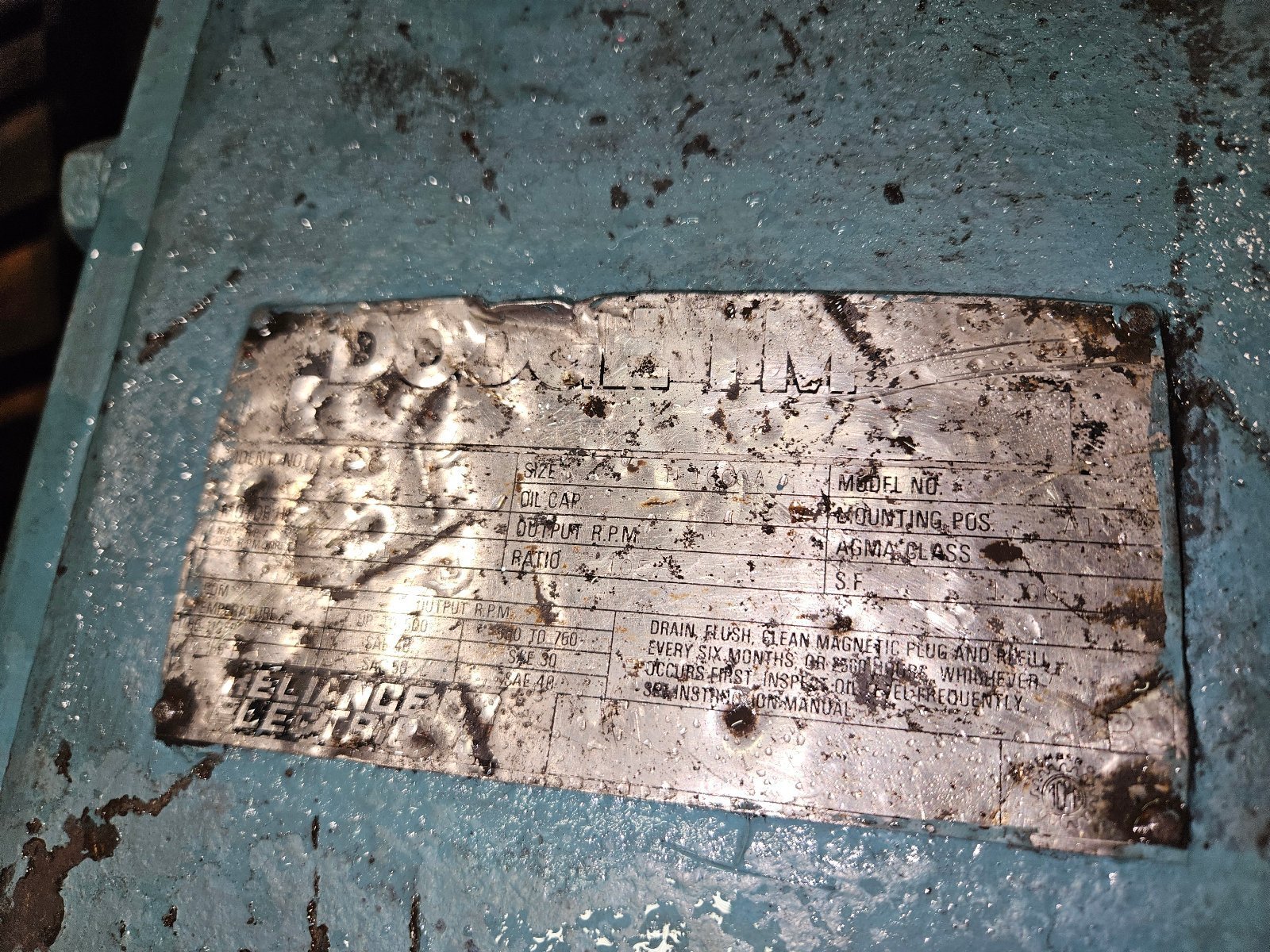

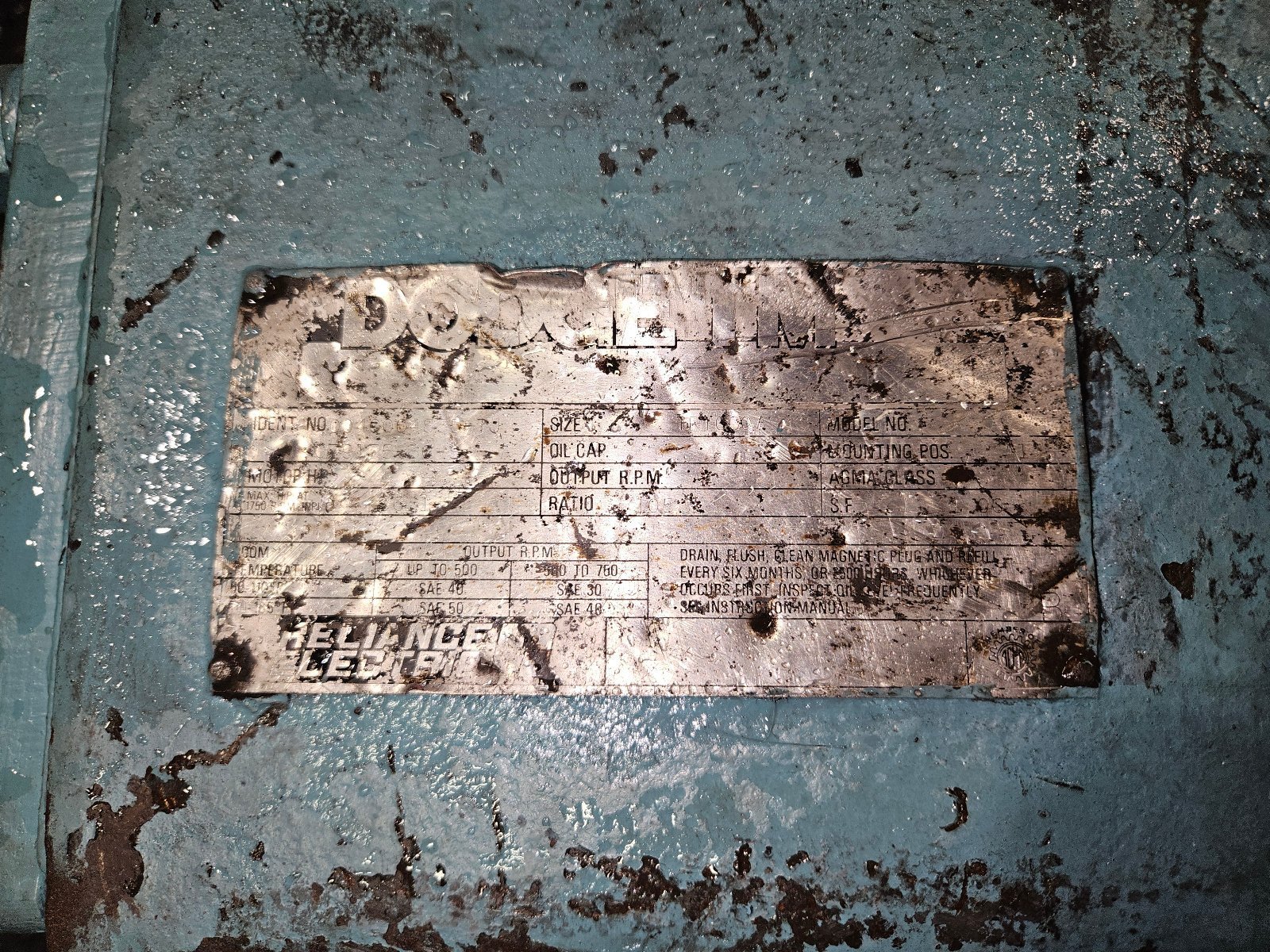

The original nameplate is heavily worn and damaged, but the manufacturer, TM series, size and 105.9:1 ratio remain identifiable.
Internal rebuild or service documentation is not available, so the unit is being represented as previously serviced/reconditioned, not as a documented remanufactured gearbox.
Specifications
Manufacturer: Dodge / Reliance Electric
Series: TM
Model / Size: TR-1000A / Size 1000
Type: Industrial concentric gear reducer
Reduction: Triple reduction
Gear Ratio: 105.9:1
Approx. Output Speed: 16.5 RPM with 1,750 RPM input
Mounting: Foot mounted
Configuration: Inline / concentric input and output shafts
Lubrication: Oil bath
Condition: Used – previously serviced/reconditioned
Nameplate: Present but partially damaged / difficult to read
Reference Performance
The later Dodge Maxum Size 10 equivalent family at a 105.9:1 ratio is rated approximately:
81.7 HP mechanical input rating at 1.0 service factor
294,000 lb-in output torque
Approximately 24,500 lb-ft output torque
These figures are provided for general Dodge equivalent-family reference only and should not be considered confirmed original TR-1000A nameplate ratings.
Condition:
– Previously serviced / reconditioned appearance
– No visible cracks or broken mounting feet
– Large output shaft and keyway present
– Input shaft present
– Stored indoors
– Nameplate worn but partially legible
– Internal condition and prior rebuild details unknown, except that it was refurbished by Electro-Mec Inc. The unit was taken out of the “good refurbished units” storage area in the facility with other similar units as spares.
Unit is sold as used industrial surplus unless otherwise agreed.
Additional Information to Be Added:
Input shaft diameter: TBD
Output shaft diameter: TBD
Overall dimensions: TBD
Approximate weight: 2250 lbs
Mounting-hole dimensions: TBD
Operational/test status: turns 360 degrees freely and has no play.
Additional photographs, measurements, and loading assistance can be provided.
Shipping
Freight shipping required.
Buyer is responsible for freight unless otherwise arranged.
Unit can be palletized and prepared for commercial freight shipment. Loading assistance is available.
Known price of similar specs documented refurbished units is close to 24000 USD, new units at 35-50k USD.
Serial: 0040004835-TJ
